COMMANDO SERIES

OD mount pipe beveling tools for pipe weld preparation

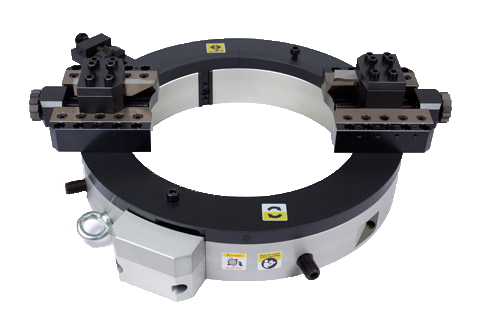

The Commando Series from Magnatech LLC offers expert, precise weld preparation for pipe. The portable OD mount models can simultaneously sever and bevel pipe, increasing productivity across the board. Our standard range has ten models that cover the size of 50mm to 1230mm (2in to 48in pipe). The aluminum bodies of the Commando Series Models are designed with a lightweight and compact cross section for applications with restricted clearances. Our split frame technology makes mounting and dismounting easy. The 180 degree segments of the frame bolt together and clamp on the pipe with interchangeable mounting blocks.

Download/View PDF Request Quote



commando series
COMMANDO SERIES

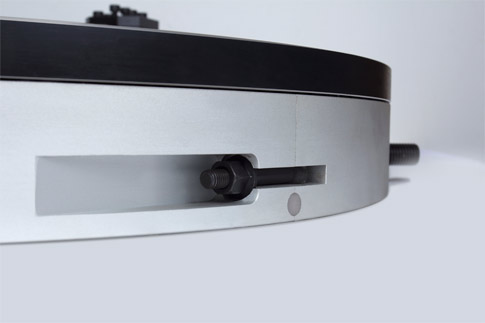

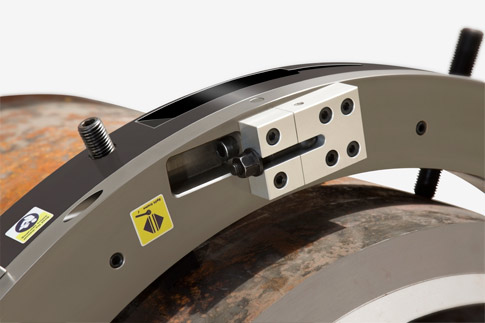

SPLIT FRAME

  • Allows for quick mounting and dismounting on in-line pipe
  • COLD SEVERING AND BEVELING

  • Severing and beveling with a torch not only requires additional grinding, but may cause an undesirable heat affected zone
  • Reduces safety issues associated with traditional severing/ beveling methods

LOW AXIAL/RADIAL CLEARANCE

  • Provides easier access between pipes
  • Allows for severing and beveling of short pipe sections

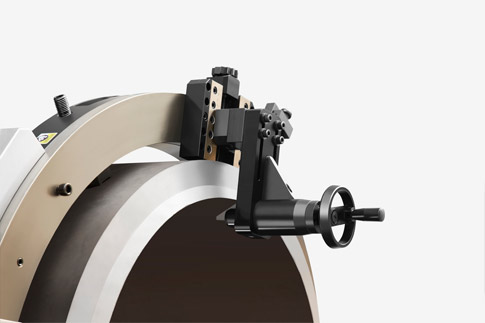

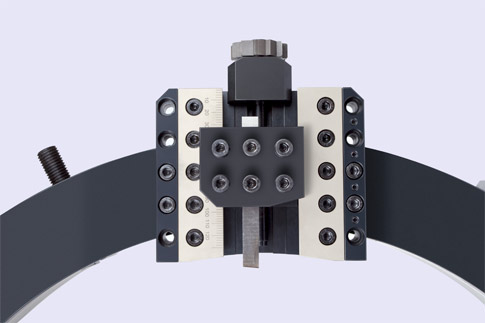

AUTOMATIC TOOL FEED

  • Simplifies operator use, while maintaining precise bevels
  • Eliminates need for skilled operator

COMMANDO SERIES

Clearances
MODEL DIMENSION A (mm/in) DIMENSION B (mm/in) DIMENSION C (mm/in)
C6 185mm / 7.30"(19”) 512mm / 20.16" 192mm / 7.56"
C10 283mm / 11.15" 612mm / 24.10" 192mm / 7.56"
C14 386mm / 15.20" 719mm / 28.31" 192mm / 7.56"
C18 469mm / 18.46" 807mm / 31.78" 195mm / 7.68"
C22 570mm / 22.44" 910mm / 35.83" 195mm / 7.68"
C26 670mm / 26.38" 1020mm / 40.16" 195mm / 7.68"
C30 570mm / 22.44" 910mm / 35.83" 195mm / 7.68"
C36 924mm / 36.38" 1296mm / 51.03" 214mm / 8.43"
C42 1077mm / 42.40" 1468mm / 57.80" 1216mm / 8.50"
C48 1248mm / 49.14" 1646mm / 64.81" 216mm / 8.50"
Working Range
MODEL OD INCHES OD MM WALL THICKNESS
C6 2.375-6.625 50-168 Up to 30mm (1.2")
C10 5.563-10.75 125-275 Up to 30mm (1.2")
C14 8.625-14.00 719mm / 28.31" 192mm / 7.56"
C18 12.75-18.00 300-457 Up to 30mm (1.2")
C22 16.00-22.00 400-560 Up to 30mm (1.2")
C26 20.00-26.00 508-600 Up to 30mm (1.2")
C30 24.00-30.00 600-762􀀃 Up to 30mm (1.2")
C36 30.00-36.00 762-914 Up to 30mm (1.2")
C42 136.00-42.00 914-1066 Up to 30mm (1.2")
C48 42.00-48.00 1066-1230 Up to 30mm (1.2")
Machine Weights
MODEL Machine Weight Shipping Weight Package Size, mm (LWH)
C6 42Kg / 92lbs 68Kg / 150lbs 640 x 650 x 280
C10 44Kg / 99lbs 80Kg / 176lbs 770 x 710 x 280
C14 56Kg / 123lbs 94Kg / 207lbs 785 x 845 x 280
C18 65Kg / 143lbs 107Kg / 235lbs 920 x 870 x 280
C22 79Kg / 174lbs 400-560 Up to 30mm (1.2")
C26 96Kg / 212lbs 150Kg / 331lbs 1050 x 1050 x 330
C30 116Kg / 256lbs 172Kg / 379lbs 1090 x 1090 x 330
C36 145Kg / 320lbs 210Kg / 463lbs 1130 x 1200 x 330
C42 198Kg / 437lbs 282Kg / 622lbs 1320 x 730 x 330
C48 236Kg / 520lbs 339Kg / 747lbs 1570 x 820 x 330
